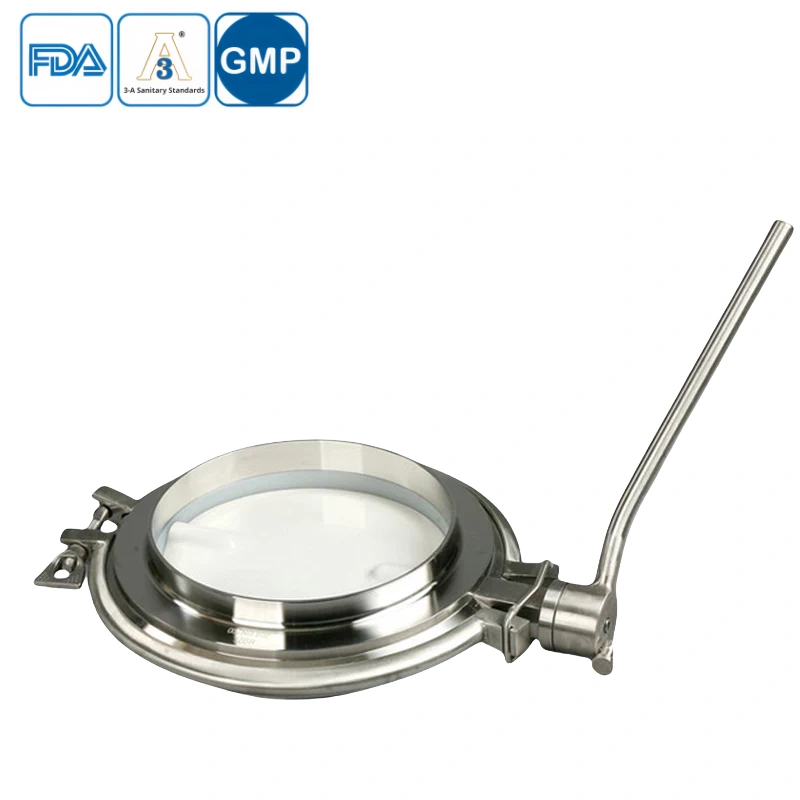

Sanitary Clamped Powder Butterfly Valve for easy process control
The Sanitary Clamped Powder Butterfly Valve is engineered for superior performance in hygienic applications, featuring 304/316L stainless steel construction for exceptional corrosion resistance and durability. Its quick-release clamp design enables fast disassembly for easy cleaning and maintenance, ensuring compliance with AS, BS, 3A, SMS, and DIN standards. The valve is FDA, 3A, and CE certified, making it ideal for pharmaceutical and food processing industries where sanitary conditions are critical. The smooth internal surface minimizes powder buildup, while the tri-clamp connections provide secure, leak-free sealing for high-purity processes.
For optimal system safety, we recommend clamp gaskets, single-pin heavy duty clamp, and pipe holder to ensure stable, leak-proof connections and simplified maintenance.
Sanitary Clamped Powder Butterfly Valve Part Numbers & Dimensions
| Size (Tube OD) |
Part Number | Dimensions | Break Torque | Pressure Rating | Flow Coefficient | |||
|---|---|---|---|---|---|---|---|---|
| EPDM | A | B | C | D | in/lbs | (PSI) | (CV) | |
| 1 “ | BFVPC-1-316-EPDM | 2.60 | 3.20 | 5.49 | 6.79 | 75 | 140 | 23 |
| 1-1/2″ | BFVPC-1.5-316-EPDM | 2.60 | 3.33 | 5.49 | 6.79 | 130 | 140 | 80 |
| 2 “ | BFVPC-2-316-EPDM | 2.75 | 3.72 | 5.49 | 6.87 | 165 | 140 | 230 |
| 2-1/2″ | BFVPC-2.5-316-EPDM | 2.75 | 3.85 | 5.49 | 6.87 | 210 | 110 | 264 |
| 3 “ | BFVPC-3-316-EPDM | 3.00 | 4.25 | 5.49 | 7.00 | 350 | 110 | 372 |
| 4 “ | BFVPC-4-316-EPDM | 3.00 | 4.75 | 6.87 | 8.37 | 540 | 85 | 800 |
Looking for even more information on sanitary valves? We have everything you need. Read the catalog of sanitary valves for detailed specifications.
