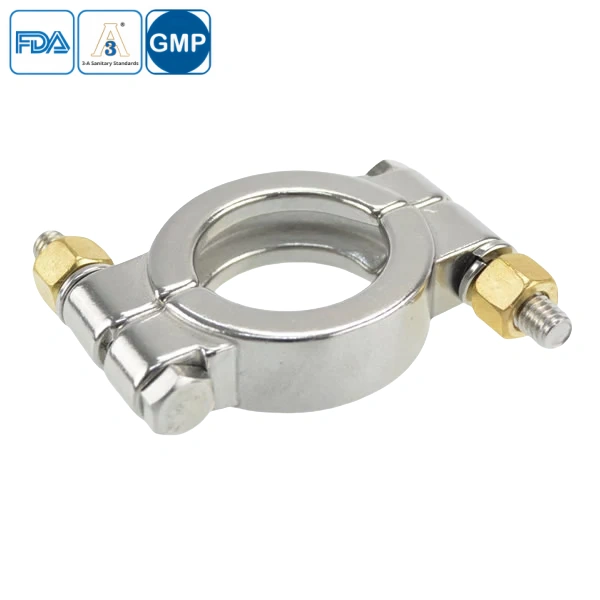

High Pressure Clamp for easy process control
The High Pressure Clamp is engineered for superior durability and performance in demanding industrial applications. Constructed from premium 304 and 316L stainless steel, it ensures exceptional corrosion resistance and long-term reliability. Its robust design features a quick-release mechanism for effortless installation and maintenance, significantly reducing downtime. Manufactured to comply with AS, BS, 3A, SMS, and DIN standards, this clamp meets stringent FDA, 3A, and CE certification requirements, making it ideal for hygienic environments. Perfect for pharmaceutical and food processing industries, it guarantees secure tri-clamp connections under high-pressure conditions while maintaining sanitary integrity.
For optimal system safety, we recommend clamp gaskets, single-pin heavy duty clamp, and pipe holder to ensure leak-free tri-clamp connections and stable pipeline support.
High Pressure Clamp Part Numbers & Dimensions
| Size (Tube OD) |
Part Number | Dimensions | Break Torque | Pressure Rating | Flow Coefficient | |||
|---|---|---|---|---|---|---|---|---|
| EPDM | A | B | C | D | in/lbs | (PSI) | (CV) | |
| 1 “ | BFVPC-1-316-EPDM | 2.60 | 3.20 | 5.49 | 6.79 | 75 | 140 | 23 |
| 1-1/2″ | BFVPC-1.5-316-EPDM | 2.60 | 3.33 | 5.49 | 6.79 | 130 | 140 | 80 |
| 2 “ | BFVPC-2-316-EPDM | 2.75 | 3.72 | 5.49 | 6.87 | 165 | 140 | 230 |
| 2-1/2″ | BFVPC-2.5-316-EPDM | 2.75 | 3.85 | 5.49 | 6.87 | 210 | 110 | 264 |
| 3 “ | BFVPC-3-316-EPDM | 3.00 | 4.25 | 5.49 | 7.00 | 350 | 110 | 372 |
| 4 “ | BFVPC-4-316-EPDM | 3.00 | 4.75 | 6.87 | 8.37 | 540 | 85 | 800 |
Looking for even more information on sanitary valves? We have everything you need. Read the catalog of sanitary pipe fittings for detailed specifications.
