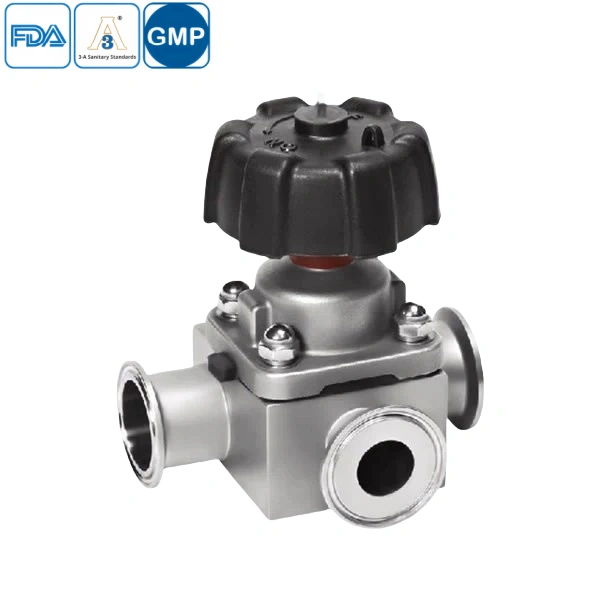

T-Type Clamped Forging Diaphragm Valve for easy process control
The T-Type Clamped Forging Diaphragm Valve is engineered for superior performance in hygienic applications, featuring 304/316L stainless steel construction for exceptional corrosion resistance and durability. Its forged body design ensures high-pressure resistance, while the quick-release clamp mechanism allows for fast disassembly and maintenance. Precision-machined to meet AS, BS, 3A, SMS, and DIN standards, this valve complies with FDA, 3A, and CE certifications, making it ideal for pharmaceutical and food processing industries. The diaphragm design prevents contamination, ensuring zero leakage and maximum system integrity.
For optimal system safety, we recommend clamp gaskets, single-pin heavy duty clamp, and pipe holder to ensure secure tri-clamp connections, stable pipeline support, and simplified maintenance.
T-Type Clamped Forging Diaphragm Valve Part Numbers & Dimensions
| Size (Tube OD) |
Part Number | Dimensions | Break Torque | Pressure Rating | Flow Coefficient | |||
|---|---|---|---|---|---|---|---|---|
| EPDM | A | B | C | D | in/lbs | (PSI) | (CV) | |
| 1 “ | BFVPC-1-316-EPDM | 2.60 | 3.20 | 5.49 | 6.79 | 75 | 140 | 23 |
| 1-1/2″ | BFVPC-1.5-316-EPDM | 2.60 | 3.33 | 5.49 | 6.79 | 130 | 140 | 80 |
| 2 “ | BFVPC-2-316-EPDM | 2.75 | 3.72 | 5.49 | 6.87 | 165 | 140 | 230 |
| 2-1/2″ | BFVPC-2.5-316-EPDM | 2.75 | 3.85 | 5.49 | 6.87 | 210 | 110 | 264 |
| 3 “ | BFVPC-3-316-EPDM | 3.00 | 4.25 | 5.49 | 7.00 | 350 | 110 | 372 |
| 4 “ | BFVPC-4-316-EPDM | 3.00 | 4.75 | 6.87 | 8.37 | 540 | 85 | 800 |
Looking for even more information on sanitary valves? We have everything you need. Read the catalog of sanitary valves for detailed specifications.
