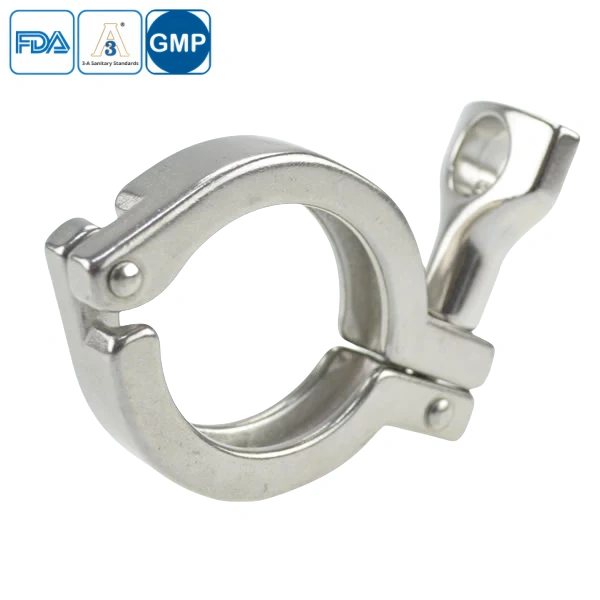

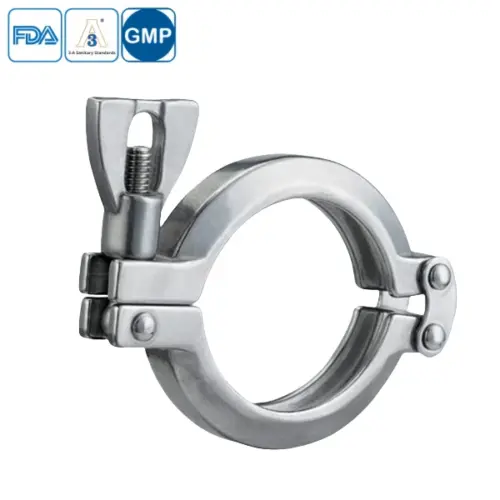

Heavy Duty Tri-Clover Clamp for easy process control
The Heavy Duty Tri-Clover Clamp is engineered for superior performance in demanding hygienic applications. Constructed from premium 304 or 316L stainless steel, it ensures exceptional corrosion resistance and durability. Its precision design adheres to AS, BS, 3A, SMS, and DIN standards, meeting FDA, 3A, and CE certification requirements for compliance in critical industries. The quick-release mechanism allows for effortless disassembly, streamlining maintenance in pharmaceutical and food processing environments. Ideal for high-pressure systems, this clamp guarantees leak-proof tri-clamp connections while maintaining strict sanitary standards.
For optimal system safety, we recommend clamp gaskets, single-pin heavy duty clamp, and pipe holder to ensure leak-free tri-clamp connections and stable pipeline support.
Heavy Duty Tri-Clover Clamp Part Numbers & Dimensions
| Size (Tube OD) |
Part Number | Dimensions | Break Torque | Pressure Rating | Flow Coefficient | |||
|---|---|---|---|---|---|---|---|---|
| EPDM | A | B | C | D | in/lbs | (PSI) | (CV) | |
| 1 “ | BFVPC-1-316-EPDM | 2.60 | 3.20 | 5.49 | 6.79 | 75 | 140 | 23 |
| 1-1/2″ | BFVPC-1.5-316-EPDM | 2.60 | 3.33 | 5.49 | 6.79 | 130 | 140 | 80 |
| 2 “ | BFVPC-2-316-EPDM | 2.75 | 3.72 | 5.49 | 6.87 | 165 | 140 | 230 |
| 2-1/2″ | BFVPC-2.5-316-EPDM | 2.75 | 3.85 | 5.49 | 6.87 | 210 | 110 | 264 |
| 3 “ | BFVPC-3-316-EPDM | 3.00 | 4.25 | 5.49 | 7.00 | 350 | 110 | 372 |
| 4 “ | BFVPC-4-316-EPDM | 3.00 | 4.75 | 6.87 | 8.37 | 540 | 85 | 800 |
Looking for even more information on sanitary valves? We have everything you need. Read the catalog of sanitary pipe fittings for detailed specifications.
