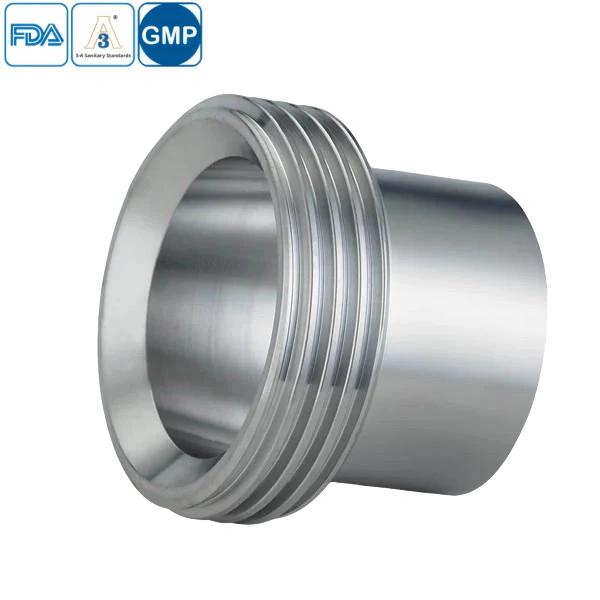

DIN11864 Union Male for easy process control
The DIN11864 Union Male is crafted from premium 304 or 316L stainless steel, ensuring superior corrosion resistance and durability for demanding sanitary applications. Its quick-release clamp design enables fast, tool-free disassembly, simplifying maintenance and reducing downtime in high-efficiency production lines. Precision-engineered to meet AS, BS, 3A, SMS, and DIN standards, this fitting complies with FDA, 3A, and CE certifications for hygienic safety. Ideal for pharmaceutical and food processing industries, the union male provides secure, leak-proof tri-clamp connections while maintaining smooth internal surfaces to prevent bacterial buildup.
For optimal system safety, we recommend clamp gaskets, single-pin heavy duty clamp, and pipe holder to ensure leak-free tri-clamp connections and stable pipeline support.
DIN11864 Union Male Part Numbers & Dimensions
| Size (Tube OD) |
Part Number | Dimensions | Break Torque | Pressure Rating | Flow Coefficient | |||
|---|---|---|---|---|---|---|---|---|
| EPDM | A | B | C | D | in/lbs | (PSI) | (CV) | |
| 1 “ | BFVPC-1-316-EPDM | 2.60 | 3.20 | 5.49 | 6.79 | 75 | 140 | 23 |
| 1-1/2″ | BFVPC-1.5-316-EPDM | 2.60 | 3.33 | 5.49 | 6.79 | 130 | 140 | 80 |
| 2 “ | BFVPC-2-316-EPDM | 2.75 | 3.72 | 5.49 | 6.87 | 165 | 140 | 230 |
| 2-1/2″ | BFVPC-2.5-316-EPDM | 2.75 | 3.85 | 5.49 | 6.87 | 210 | 110 | 264 |
| 3 “ | BFVPC-3-316-EPDM | 3.00 | 4.25 | 5.49 | 7.00 | 350 | 110 | 372 |
| 4 “ | BFVPC-4-316-EPDM | 3.00 | 4.75 | 6.87 | 8.37 | 540 | 85 | 800 |
Looking for even more information on sanitary valves? We have everything you need. Read the catalog of sanitary pipe fittings for detailed specifications.
