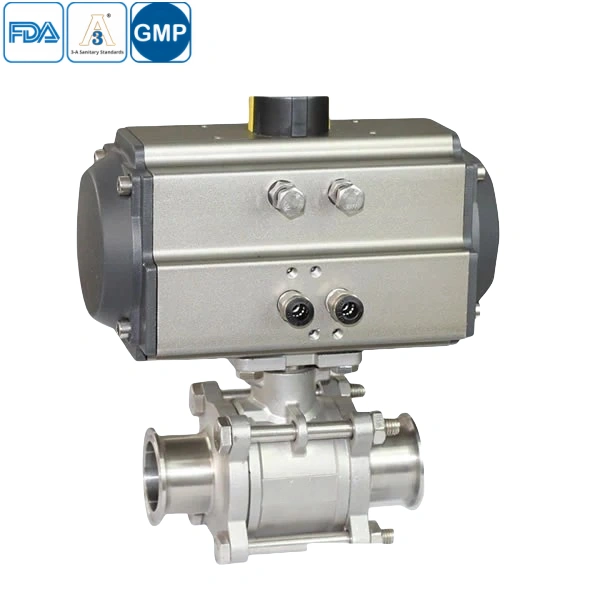

3-Piece Sanitary Ball Valve with Pneumatic Actuation for easy process control
The 3-Piece Sanitary Ball Valve with Pneumatic Actuation is engineered for precision and durability in demanding hygienic applications. Constructed from premium 304 or 316L stainless steel, it ensures corrosion resistance and compliance with FDA, 3A, and CE standards. Its quick-disassembly design allows for effortless cleaning and maintenance, while the pneumatic actuation enables seamless remote operation. The valve adheres to AS, BS, 3A, SMS, and DIN dimensional standards, guaranteeing compatibility with global sanitary systems. Ideal for pharmaceutical and food processing industries, this valve maintains sterile conditions with its polished surface (Ra ≤ 0.8μm) and leak-proof tri-clamp connections.
For optimal system safety, we recommend clamp gaskets, single-pin heavy duty clamp, and pipe holder to ensure secure integration. These components enhance leak-free performance, stabilize pipeline connections, and simplify maintenance for long-term hygienic operation.
3-Piece Sanitary Ball Valve with Pneumatic Actuation Part Numbers & Dimensions
| Size (Tube OD) |
Part Number | Dimensions | Break Torque | Pressure Rating | Flow Coefficient | |||
|---|---|---|---|---|---|---|---|---|
| EPDM | A | B | C | D | in/lbs | (PSI) | (CV) | |
| 1 “ | BFVPC-1-316-EPDM | 2.60 | 3.20 | 5.49 | 6.79 | 75 | 140 | 23 |
| 1-1/2″ | BFVPC-1.5-316-EPDM | 2.60 | 3.33 | 5.49 | 6.79 | 130 | 140 | 80 |
| 2 “ | BFVPC-2-316-EPDM | 2.75 | 3.72 | 5.49 | 6.87 | 165 | 140 | 230 |
| 2-1/2″ | BFVPC-2.5-316-EPDM | 2.75 | 3.85 | 5.49 | 6.87 | 210 | 110 | 264 |
| 3 “ | BFVPC-3-316-EPDM | 3.00 | 4.25 | 5.49 | 7.00 | 350 | 110 | 372 |
| 4 “ | BFVPC-4-316-EPDM | 3.00 | 4.75 | 6.87 | 8.37 | 540 | 85 | 800 |
Looking for even more information on sanitary valves? We have everything you need. Read the catalog of sanitary valves for detailed specifications.
